PWW Portable Wheel Weigher
Available in 25,000 lb, 10,000 lb & 5000 lb capacities
Many resolutions to choose from
|

25,000 lb capacity per pad / 50,000lb per axle
10,000 lb per pad x 5 lb or 5,000 lb per pad x 1 lb
|

|
|

|

|
 |
2 5,000
lb capacity per pad / 50,000lb per axle also available in 10,000 lb &
5000 lb capacities
|
 |

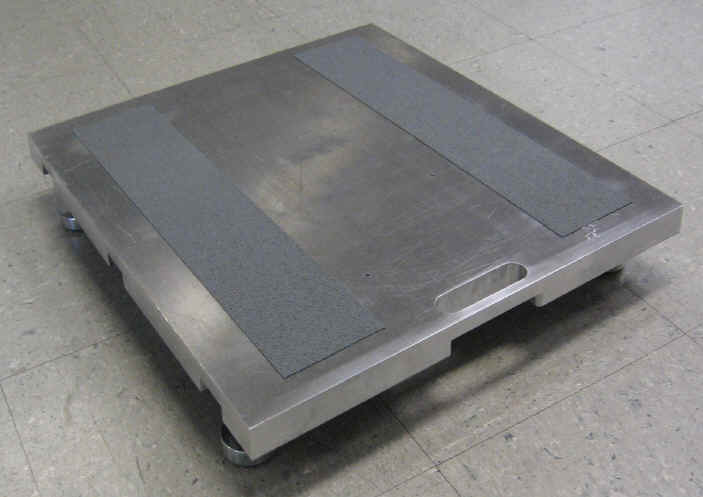

Constructed
of high strength aluminum
|
 |
Low
height means low ramp angle and a high degree of accuracy
|
 |
22"
Wide platform will accommodate dual tires easily and safely.
|
 |
Non-skid
pattern ensures maximum grip in wet or snowy conditions.
|
 |
Weighs
in Lbs & Kgs.
|
|

|
Model AX-5 weight indicator in portable case
with built-in printer
All the scale pads connect to one
display. Displays in Lbs & Kgs, RS232 printer/computer
output
Internal rechargeable battery (12 hour continuous use battery life, 8
hour recharge).
In WHEEL WEIGHING mode with the total function it is possible to
print/display:
The weight of the single platforms, sum of any of their combinations,
total weight of all the platforms
The number of weighments performed, the accumulated weight and the sum
of the subtotals carried out.
Prints the center of gravity coordinates.
|
| Model |
Capacity |
with AX-5 display & printer |
PWW-25K-2
(set of two 25,000lb scales) |
50,000 lb x 10 lb increments
25,000lb capacity per scale |
$2345 |
PWW-25K-4
(set of four 25,000lb scales) |
100,000 lb x 10 lb increments
25,000lb capacity per scale |
$3790 |
PWW-25K-6
(set of six 25,000 lb scales) |
150,000 lb x 10 lb increments
25,000lb capacity per scale |
$6791 |
| |
|
|
PWW-10K-2
(set of two 10,000 lb scales) |
20,000
lb x 5 lb increments
10,000 lb x 5 lb per scale |
$2345 |
PWW-10K-4
(set of four 10,000 lb scales) |
40,000
lb x 5 lb increments
10,000 lb x 5 lb per scale |
$3790 |
PWW-10K-6
(set of six 10,000 lb scales) |
60,000
lb x 5 lb increments
10,000 lb x 5 lb per scale |
$6791 |
| |
|
|
PWW-5K-2
(set of two 5000 lb scales) |
10,000
lb x 1 lb increments
5,000 lb x 1 lb per scale |
$2345 |
PWW-5K-4
(set of four 5,000 lb scales) |
20,000
lb x 1 lb increments
5,000 lb x 1 lb per scale |
$3790 |
PWW-5K-6
(set of six 5,000 lb scales) |
30,000
lb x 1 lb increments
5,000 lb x 1 lb per scale |
$6791 |
| |
|
|
| Accessories |
|
|
| Optional pair of hard rubber ramps |
|
$150 per pair |

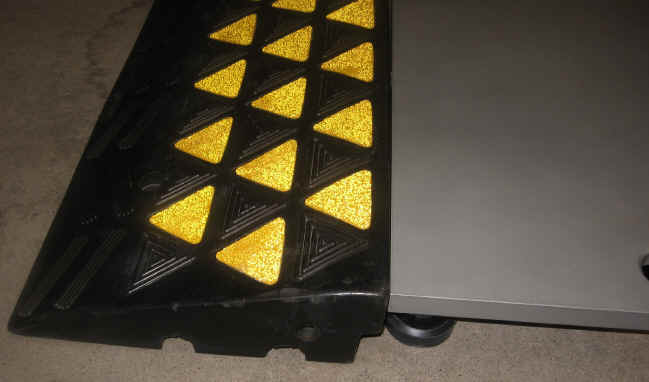

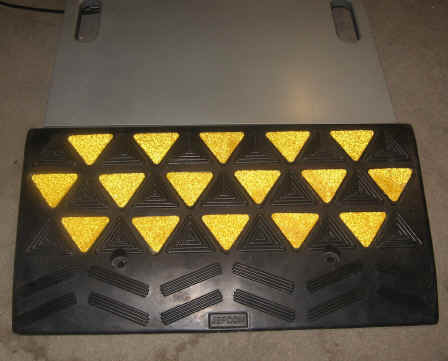

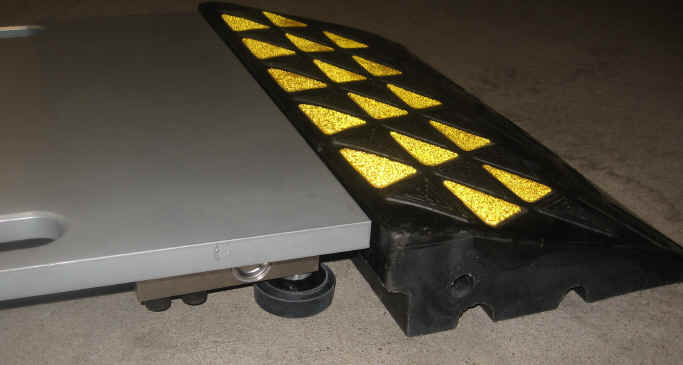

PWW scale with optional ramp

Ramp has two holes for securing it to the ground


|
