Ultra Low Profile weigh pad scales
40,000 lb per pad / 80,000lb per axle (less than 3/4" high), wide enough to accommodate double tires
(Perfect for Environmental & Demolition waste removal applications)
also often used by Fire Departments, EMS and Vehicle Mfrs.

ultra slim weigh pad

Capacity
20,000 lb or 40,000 lb per pad
Graduation value 20 lb. (standard), other resolutions possible

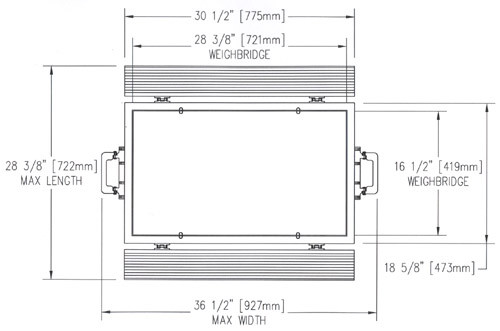

Overall dimensions See sketch
Active weighing surface 28.4" width x 16.5" length (in traffic direction)
Weight 52 lb. (with ramps), 42 lb. (pad only)
Temperature range -20C to 60C
Ground requirement Concrete or asphalt surface preferred

Model AX-5 display

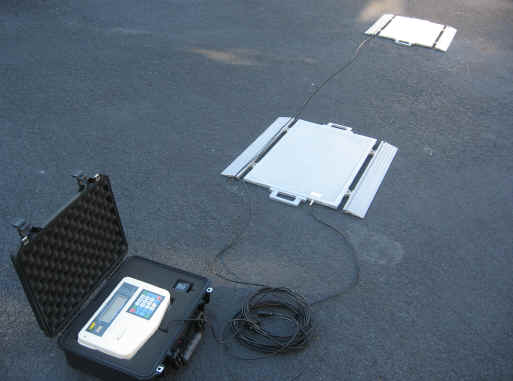

Model AX-5 weight indicator in portable case
shown with optional built-in printer

All the scale pads connect to one display.  Displays in Lbs & Kgs, RS232 printer/computer output
Internal rechargeable battery (12 hour continuous use battery life, 8 hour recharge).
In WHEEL WEIGHING mode with the total function it is possible to print/display:
The weight of the single platforms, sum of any of their combinations, total weight of all the platforms
The number of weighments performed, the accumulated weight and the sum of the subtotals carried out.
Prints the center of gravity coordinates.

Price includes the AX-5 weight indicator

Model Capacity

With AX-5

Ultra Low profile- 40K-20
(Set of 2 scales)
40,000 lb x 20 lb increments
(2) 20,000 lb capacity scales

One axle at a time

$3350

Ultra Low profile-80K-20
(Set of 4 scales)
80,000 lb x 20 lb increments
(4) 20,000 lb capacity scales
Two axles at a time
$5995
Ultra Low profile-120K-20
(Set of 6 scales)
120,000 lb x 20 lb increments
(6) 20,000 lb capacity scales
Three axles at a time
$8995

Ultra Low profile- 80K
(set of 2 scales)
80,000 lb x 20 lb increments
(2) 40,000lb capacity scales

One axle at a time
$3350
Ultra Low profile - 160K
(set of 4 scales)
160,000 lb x 20 lb increments
(4) 40,000lb capacity scales

Two axles at a time
$5995
Ultra Low profile-240
(Set of 6 scales)
240,000 lb x 20 lb increments
(6) 40,000lb capacity scales

Three axles at a time
$8995

Accessories
Built-in roll tape printer with
time & date for AX-5


$295

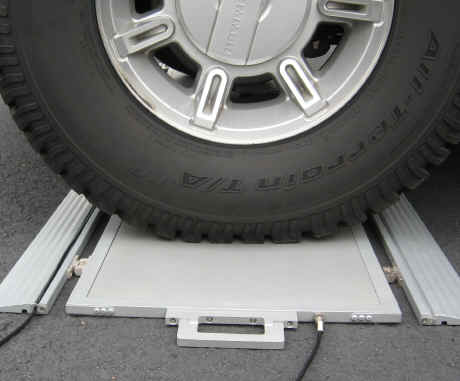

Close up of Ultra low profile axle scale



Click here for more photos
